We know rubberized magnets holders are useful and widely used. According to various usage characteristics and needs, rubberized magnets holder can be made with ring, hook, handle, gripper, clip and loop. Different structures of rubberized magnet holder are given specific name. Here we show rubber coated cable mounting magnets (rubber coated magnetic holder for cable).

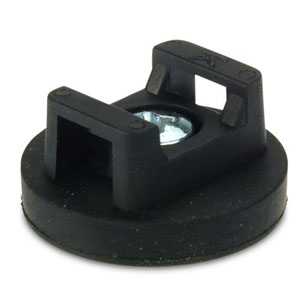

Rubber coated cable mounting magnets also known as rubber coated magnets (magnetic base) for cable mounting, which are specially used for holding/mounting cable.
Where & when are rubber coated cable mounting magnets used?
In daily life, we often need to mounting cable onto some ferromagnetism objects, where it's impossible to drill on it. Then rubber coated cable holding (mounting) magnets are the best choice.
What advantages do rubber coated cable holding magnets have?
1, Rubber coated cable mounting (holding) magnets are made with powerful neodymium disc magnet, which provide strong magnetic force. So the magnets base system can be used to mount all kinds of cable.
2, Rubber coated magnets (magnetic bases) are easy to mount and demolish, which are widely used as magnetic cable holder in one-time working place.
3, The soft rubber surface will not bring damage to the working place, so rubber coated magnets are the first choice for cable mounting.
4, Rubber coated cable mounting magnets can be repeated used.
Common Size for rubber coated cable mounting/holding magnets:
|
Item Code
|
D(mm)
|
H(mm)
|
h(mm)
|
Pull Force(kgs)
|
Weight(g)
|
|
RCCMM-22
|
22
|
16
|
6
|
3.5
|
15
|
|
RCCMM-31
|
31
|
16
|
6
|
7.5
|
23
|
|
RCCMM-43
|
43
|
16
|
6
|
10
|
34
|
Item Name: rubber coated cable mounting magnets/rubber coated magnets base for cable mounting
Construction: rubber coated magnetic base(made with neodymium magnets) + tie loops
Common Size: D22x6mm, D31x6mm, D43 x 6mm
Working Temperature:-40-80
Application: mounting & holding wire cable or pipe.
